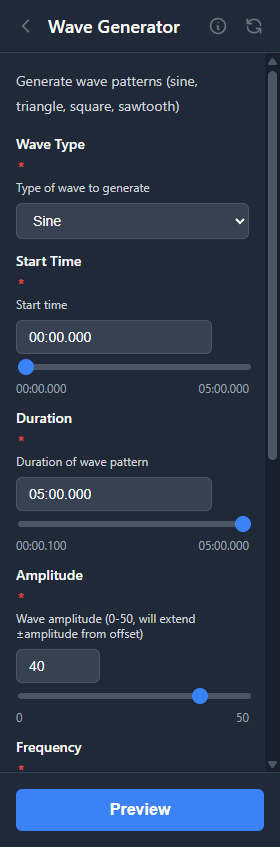

Wave Generator
Use the Wave Generator in ScriptCompiler to create periodic sine, square, and sawtooth wave patterns for your funscripts.
Overview
The Wave Generator creates periodic patterns based on mathematical wave functions. Use it to quickly generate consistent, rhythmic movements.
Wave Types
| Type | Shape | Characteristics |
|---|---|---|
| Sine | Smooth curve | Natural, gradual acceleration/deceleration |
| Square | Flat with instant transitions | Sudden jumps between positions |
| Triangle | Linear up and down | Constant speed movements |
| Sawtooth | Gradual rise, instant drop | Asymmetric patterns |
Parameters
| Parameter | Range | Description |
|---|---|---|
| Wave Type | Sine, Square, Triangle, Sawtooth | Shape of the wave |
| Frequency | 0.1 to 100 | Number of cycles in the duration |
| Amplitude | 0 to 50 | Height of the wave (from center) |
| Offset | 0 to 100 | Center position of the wave |
| Duration | 1 to 60 seconds | Length of the generated pattern |
| Point Density | 1 to 100 | Points per second (resolution of the wave) |
Frequency and Speed
Higher frequencies create faster patterns. Check the Script Overview
to ensure the speed is within device limits.
Use Cases
Rhythmic Sections
Use waves to create sections that match musical beats or regular rhythms in video content.
Filler Patterns
Generate waves to fill gaps in your script where simple, consistent motion is appropriate.
Testing Devices
Wave patterns are useful for testing device response at different speeds and amplitudes.
