Mirror
Use the Mirror tool in ScriptCompiler to flip selected funscript points up and down around a center, or play them backwards in time.
On this page
Overview

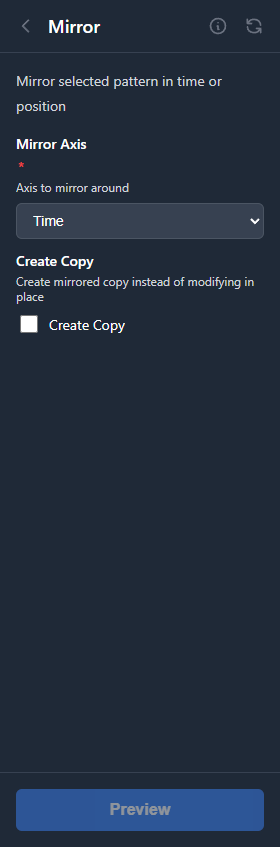

The Mirror tool flips selected points. It can flip them up and down around a center position, play them backwards in time, or both.
Position Inverter is now Mirror
The old Position Inverter did one thing: flip positions around a center.
Mirror does that by default. Pick the Position axis, leave Center at 50,
and you get the same result.
How It Works
- Position axis: each point moves to the same distance on the other side of the center. With a center of 50, a point at 20 goes to 80.
- Time axis: the selection plays backwards. The first point becomes the last. Timing is mirrored around the middle of the selection.
- Both: the two flips at once.
Turn on Create Copy to keep the originals and add the flipped points next to them.
Parameters
| Parameter | Options | Description |
|---|---|---|
| Mirror Axis | Position, Time, Both | What to flip. Position is the default. |
| Center | 0 to 100 | Position to flip around. Clear it to flip around the middle of the selection. Position and Both only. |
| Create Copy | On, Off | Keep the originals and add the flipped points as a copy |
Use Cases
Reverse the Motion
Flip a section on the Position axis so up strokes become down strokes.
Play It Backwards
Flip a section on the Time axis to play it in reverse. Add a copy to get a pattern that plays forward then back.
Build Symmetry
Select one stroke, turn on Create Copy, and mirror it to make a matching pair.
